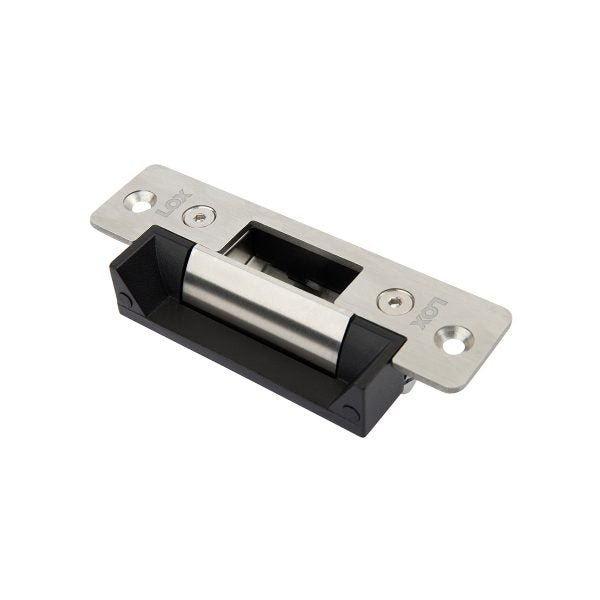

The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock. The LOX ES10 Series strikes are pre-drilled to accommodate for extension lips, come with a 5-year warranty and have a holding strength of up to 1200kg. The monitored ES10M version comes with Door Status Sensor (door latch monitoring). The non-monitored ES10 version is weather resistant IP56 rated.
The LOX ES10 Series ANSI Electric Door Strikes is one of the most successful residential & light commercial Electric Strike products in Australia. It is a dual voltage product accepting voltages of either 12 or 24VDC. The LOX ES10 Series Electric Strikes are site interchangeable from Fail- Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.
- Dual voltage 12V DC @ 200mA, 24V DC @ 100mA.
- Monitored.
- Fire rated up to 2 hours.
- Power to lock/power to open field selectable.
- Stainless steel faceplate.
- Stainless steel striker.
- Patented barbell steel locking pin.
- Solenoid can be continuously powered.
- Optional extension lips.
- Self adhesive installation template.
- Includes tab mounting kit.
- Pre-drilled for extension lips.
- Holding strength of over 1300kg.
- LES10 is suitable for 18 mm latch with a 3 mm door gap.
Download Datasheet here...
Download Manual here...
